3 Way Pad

3 Way Pad

I believe somebody already amde this but i couldn't find it. Can be hady if you want to make possible to change "direction" of 3 different lines.

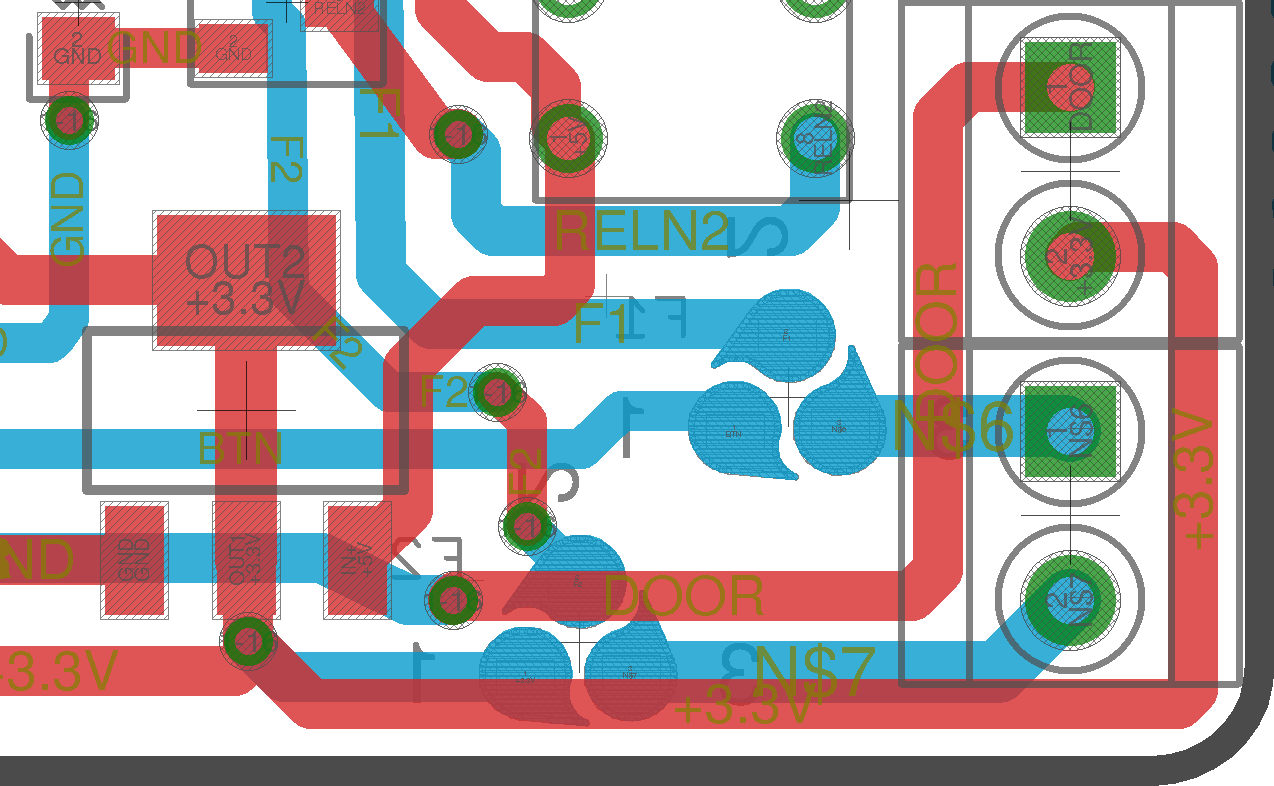

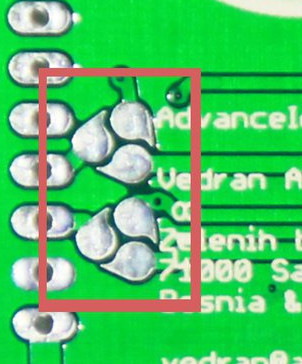

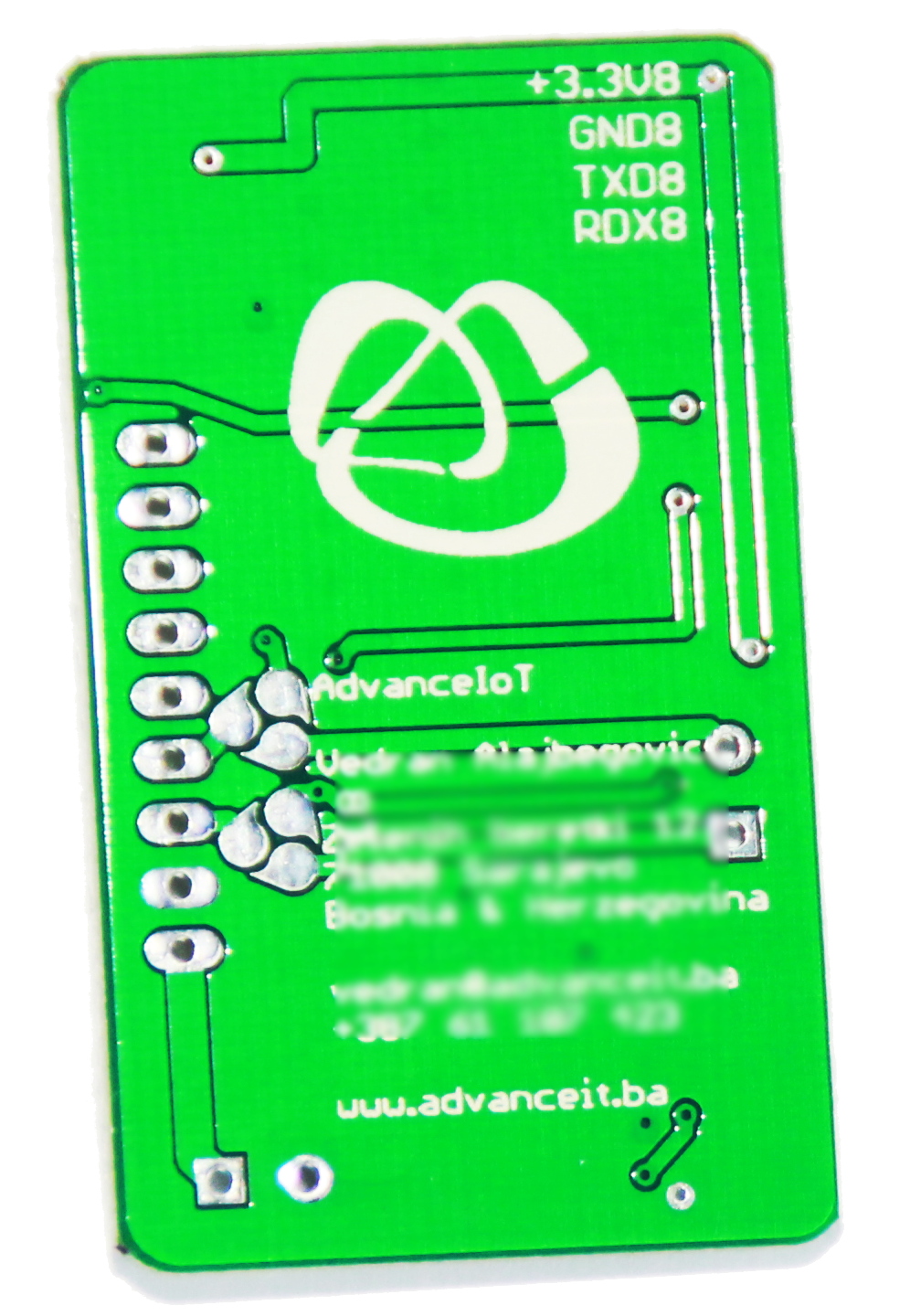

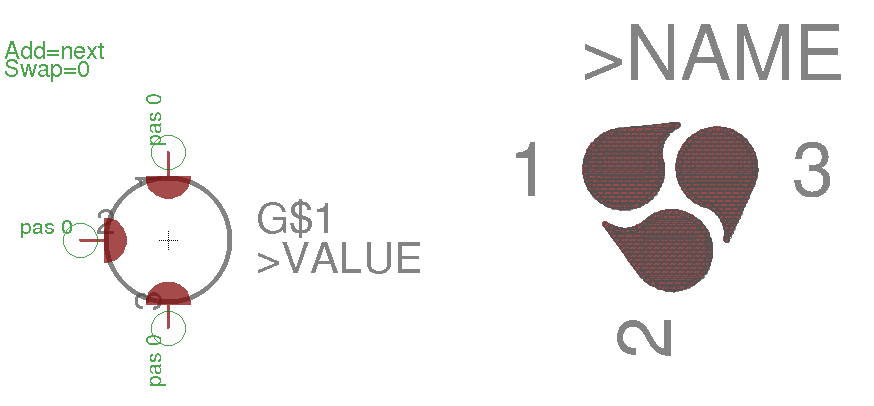

I hope it will be obvious from the images what it does.

For example:

  1. have input button which i connect to another side of a PCB (just passing a line)
  2. Redirect the input button to a MCU
  3. Use output terminal as input and redirect the signal to a MCU
